Description

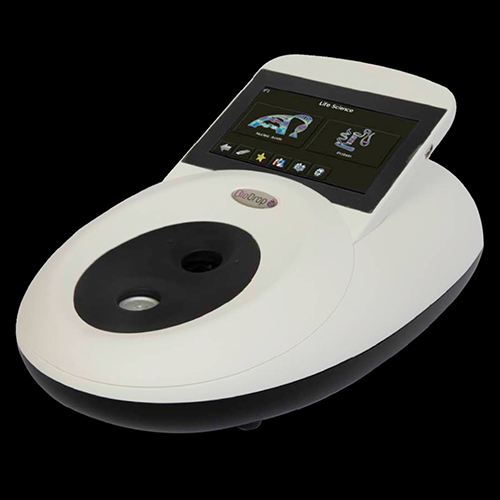

The Biochrom BioDrop Spectrophotometer is suitable for applications in PCR, QPCR, siRNA or DNA microarray. Features pre-programmed methods for DNA, RNA, oligo and protein. The BioDrop measures absorbance concentrations and features a comprehensive fluorescent dye menu.
The easy to clean micro-volume sample port accepts volumes from 1 to 5μl and has a fixed pathlength (no calibration required).
Supplied 0.5mm micro-volume port. Model with printer available (80-3006-46). Please enquire.
Specification
Wavelength Range 190 to 1100nm
Beam Split beam
Spectral Bandwidth 5nm
Wavelength Accuracy ±2nm
Wavelength Reproducibility ±1nm
Light Source Pulsed Xenon lamp
Photometric Range -0.3A to 2.5A, 0 to 199%T
Photometric Accuracy ±0.01A + 1.5% of the reading @ 546nm
Photometric Reproducibility ±0.003A (0 to 0.5A), ±0.007A(0.5 to 1.0A)
Stray Light <0.5%T @ 220nm NaI, <0.5%T @ 340nm NaNO2
Noise 0.005A peak to peak, 0.002A RMS
Software Resolution Software (included)
Dimensions (WxDxH) 280 x 410 x 190mm (without printer)
Weight Approx. 3.55kg (4kg with printer)
Power Requirement 120 to 240V~ 50/60Hz, 40VA Max
