Description

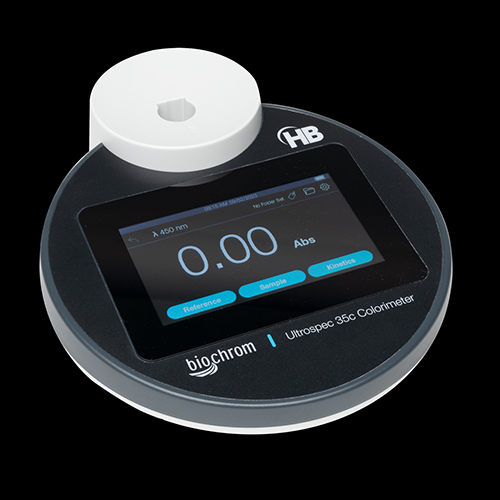

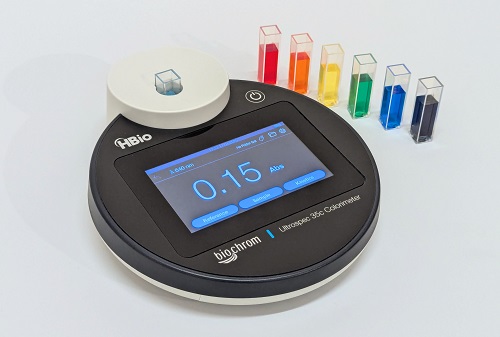

The Biochrom Ultrospec 35c Colorimeter is a compact, portable and flexible colorimeter. Perfect for lab or field-based work and can be used in industry, environmental studies or remote locations here colorimetric testing is vital.
Versatile and portable with 4.3” colour touchscreen for easy workflow, the colorimeter measures the absorbance and transmission of liquid samples in either cuvette or test tube at fixed wavelengths to determine molecular concentration, providing flexible analysis by measuring samples in absorbance and % Transmission modes, alongside simple kinetics functionality.
Features
Flexible analysis: Measures samples in absorbance and % Transmission modes, as well as having simple kinetics functionality.
Touchscreen display: 4.3’’ colour touchscreen for easy workflow.
Robust LED light source: User-selectable wavelengths of 450, 500, 520, 540, 600 and 640 nm.
Instrument data output: Measurement data can be exported to a USB flash drive as comma-separated values (.csv).
Robust LED light source: User-selectable wavelengths of 450, 500, 520, 540, 600 and 640 nm.
Versatile and portable: Small footprint allows the colorimeter to be operated as a handheld battery powered unit or connected to mains power on your benchtop.
Easy to clean: Requires very minimal maintenance.
Specification
Wavelength range: 450 to 640 nm
LED array wavelengths: 450 nm, 500 nm, 520 nm, 540 nm, 600 nm, 640 nm
Detector: Photo Diode
Display: 480 x 272-pixel resolution backlit LCD colour display
Storage conditions: -10 °C to 70 °C (14 °F to 158 °F)
Spectral bandwidth: 40 nm
Photometric range: Absorbance 0.3 to 2.0 A
Photometric accuracy: < ± 0.05 A 1 A using neutral density filter
Photometric repeatability: ± 0.02 A at 1 A
Operation modes: Absorbance, Transmission, Kinetics
Sample holder accepts: 10 mm x 10 mm cuvettes and16 mm test tubes. Can accept 10-12 mm tubes with optional adapter
Data Connector: USB-A interface for memory device
Power connector: USB-C input power at 5 V, 2 Amp max
Power (via external charger): USB charger specifications (included): 100-240 V, 50/60 Hz, 10 W
Battery: Internal rechargeable Li-Ion battery
Compliance: CE & UKCA marked, US/CAN safety (ETL or equivalent)
Dimensions: 170 mm W x 210 mm D x 50 mm H
Weight: 0.6 kg (1.3 lbs)
