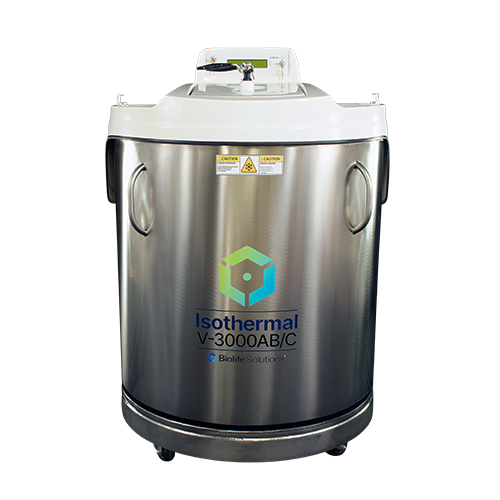

Description
All models in the Isothermal range feature jacketed technology: LN2 is contained in a space between the inner chamber and the middle wall of the freezer, so that the storage area remains dry.
The LN2 layer surrounds the entire sample storage area, top to bottom, to produce uniform temperature throughout the freezer. The design also reduces the risk of sample cross-contamination by preventing LN2 from leaking into samples and minimises sample exposure to ambient temperatures when the lid is opened.
The programmable controller features a dual temperature display, autofill, alarm, fill timers and downloadable reports.
Caster mounted and counter-balanced lockable lid. Storage racks, canisters and accessories must be ordered separately.
Features
• Excellent temperature uniformity: Storage temperature variation of <6°C from the top to the bottom of the chamber
• Superior sample integrity: Patented jacket technology
• Increased storage space: No LN2 at the bottom of the freezer
• Easy access to samples: Full opening lid
• Improved safety: Eliminates user and sample contact with LN2; completely dry storage area
Specification
LN2 Capacity: 70L
Storage
Vials: 22,100
Blood bags: 1,120
Construction: Stainless steel
Lid: Counter-balanced lockable lid
External Dimensions (w x d x h): 939x1219x1206mm
Internal Dimensions (usable h x d): 736 x 787
2301 Controller:
16 port connector
0-5 volt outputs and 4-20 mA outputs: Temperature and level data for connection to existing alarm/monitor system
Sequential and One-Fill/All-Fill input and output connection for filling systems
Two-level temperature display option:
Temp. A displays temperature at the lid, approximately 11″/27.94cm
Temp. B displays temperature inside the storage space, approximately 20″/50.80cm
Data storage: Records 12 alarms and events such as fill start, fill stop, etc. with dated time stamp, printed or displayed
Date log: Print or display Temp. A, Temp. B and level with date and time stamp
Download cryomonitor data files to PC
Global Remote Alarm-Dry contact that alerts during any alarm condition
