Description

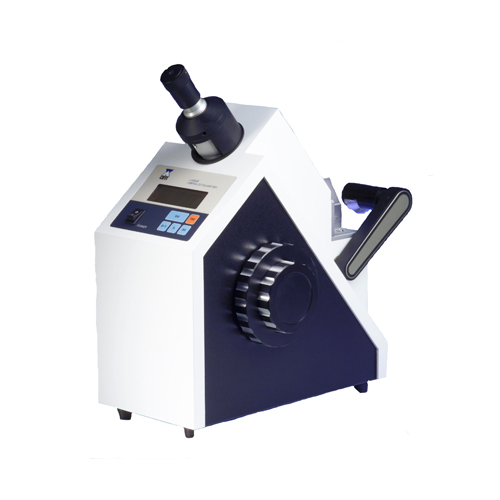

The Ceti Abbe Quartz Bench Top Digital Refractometer is a semi-automated Abbe refractometer. Its fast, digital readout offers a speedier throughput, which is particularly useful in manufacturing centres and on production lines. Presentation of a sample produces an almost instantaneous, accurate readout of the RI, %Brix value and %Brix temperature on the LCD display. An RS232-C interface is included.
Also supplied with two spare bulbs, two spare fuses, calibration set and instruction manual with correction and dispersion tables.
Features
Bench Top Digital Refractometer is a semi-automated Abbe refractometer.
- Its fast, digital readout offers a speedier throughput.
- Presentation of a sample produces an almost instantaneous, accurate readout of the RI, %Brix value and %Brix temperature on the LCD display.
- An RS232 interface is included.
Specification
Scale: Refractive Index: 1.3000 to 1.7000nD, 0 to 95% (Brix) and 0 to 90% (Brix temp. compensated) (Bx-TC)
Front Panel: On/off switch, LCD display (simultaneous read-out of the four scales) and one read-out button (soft key)
Precision: 0.0001nD / 0.00020nD, 0.1% (Brix)
Eyepiece: Focusable and for border line setting
Adjustment Knobs: For dispersion range and border line setting
Prism in Housing: Sample temperature until 50°C, sealed with chemical resistant proxy and not resistant to high corrosive products
Prism Covers: Light entry ports and water circulator connection nozzles
Lamp Holder: Swing-out and adjustable
Bulb: Tungsten 6V/2.4W/EP10
Temperature (°C)
Range: +15 to +50
Correcting Range: From +15 to +45
Dimensions; W x D x H (mm): 470 x 370 x 240
Weight (Kg): 12
