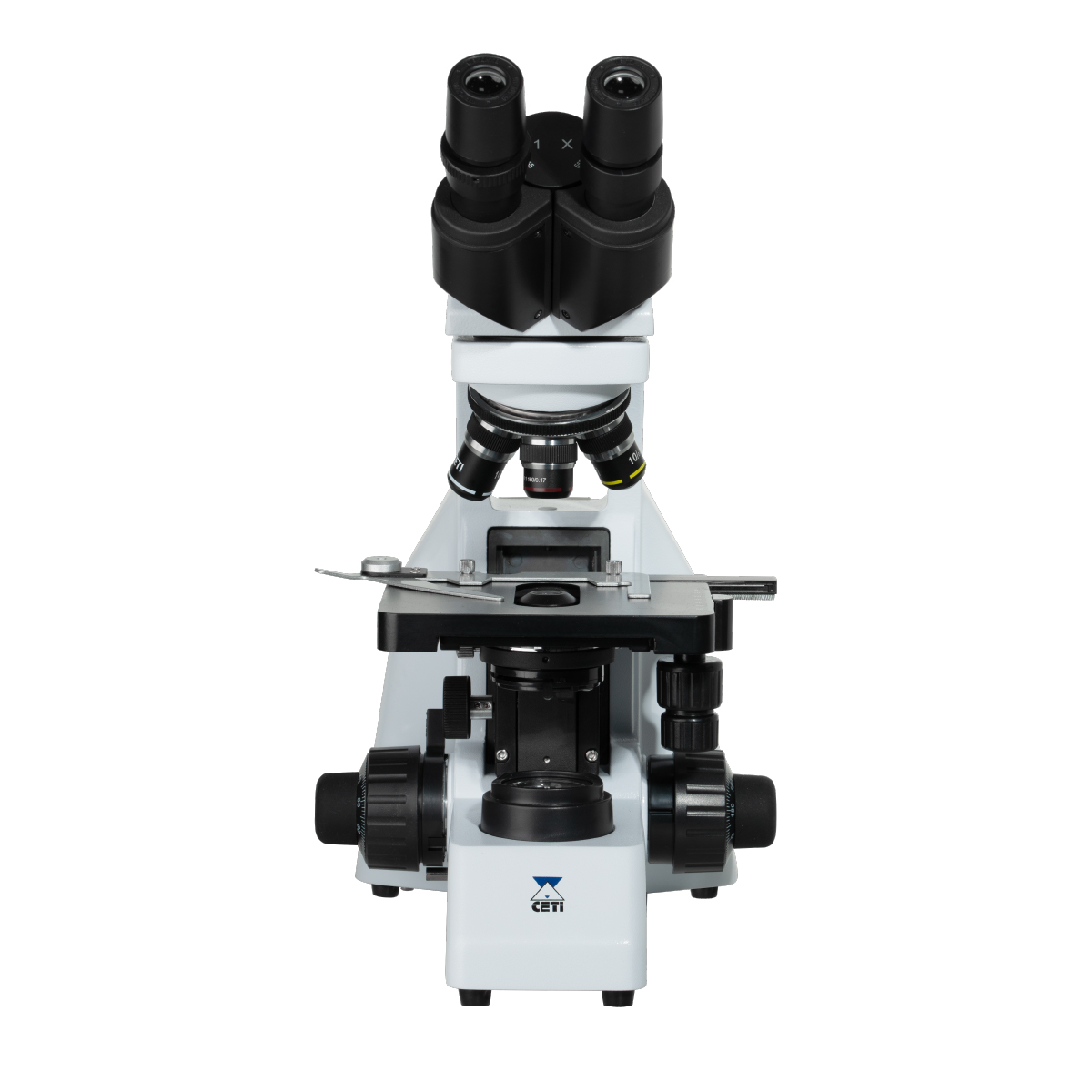

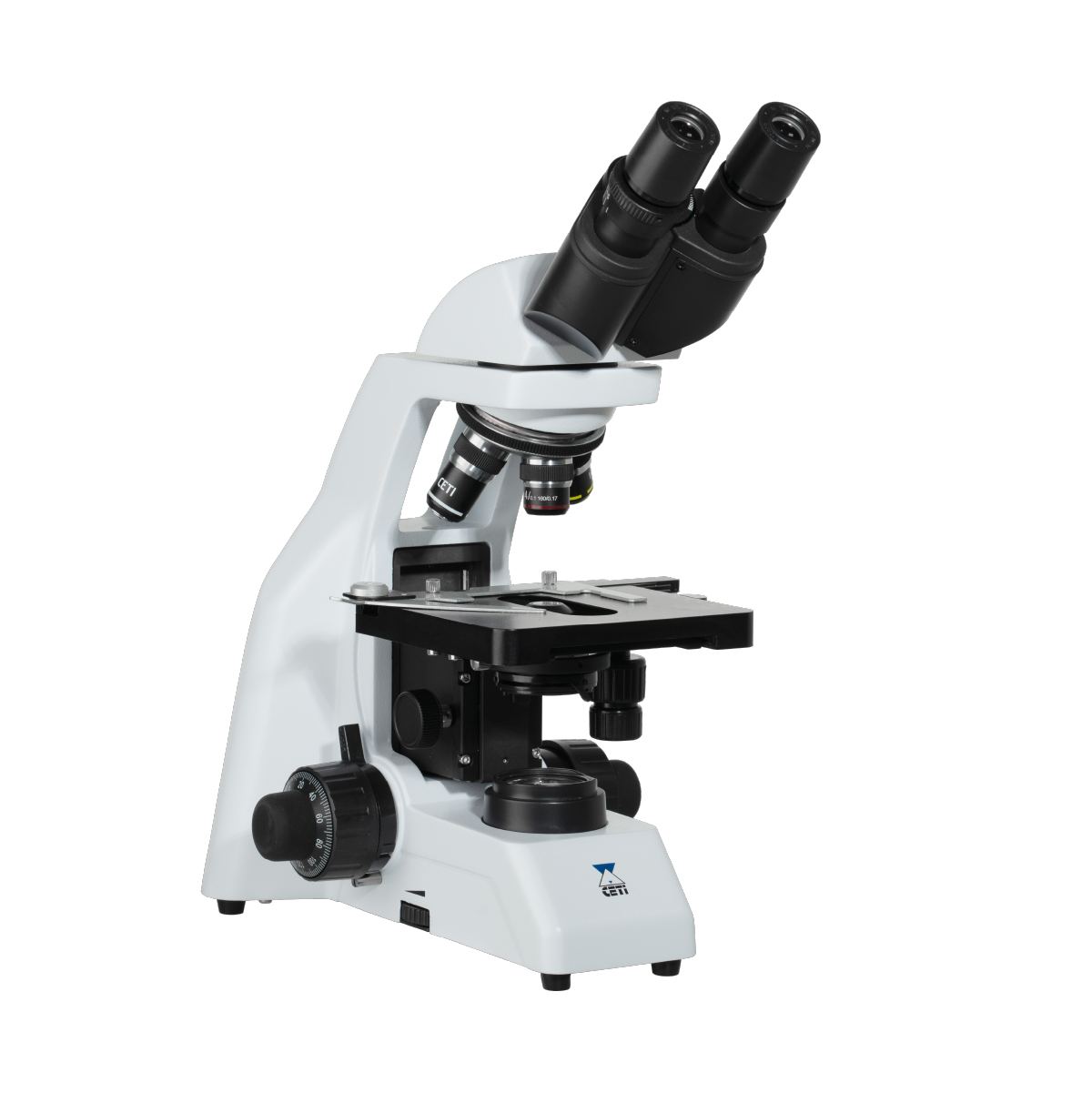

Ceti Max III Trinocular Compound Microscope with Achromatic Objectives

SKU: 1203.3004
BRAND:

£928.56

Ceti’s Max III Trinocular Compound Microscope with Achromatic Objectives is professionally designed for laboratory applications, especially in teaching laboratories, offering precise high-quality images with its fully-coated optical system.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

Ceti’s Max III Trinocular Compound Microscope with Achromatic Objectives is professionally designed microscope for advanced laboratory applications, especially in teaching laboratories, offering precise high-quality images with its fully-coated optical system.

This microscope comes with an inclined 30° and 360° rotatable trinocular head and a built-in mechanical stage. Four high clarity Achromatic objectives are supplied as standard.

Optional accessories available.

Additional information

Pack Size

1

Features

This microscope comes with an inclined 30° and 360° rotatable trinocular head and a built-in mechanical stage. Four high clarity Achromatic objectives are supplied as standard.

Specification

Optical Head
     Trinocular with photo port, inclined at 30°
     Interpupillary distance adjustment (Siedentopf type): 47 to 78mm
     Dioptre adjustment on one eyepiece
Eyepieces:  10x / 18mm widefield (pointer in one eyepiece)
Nosepiece:  Quadruple reversed, revolving with click stop
Objectives:  4x, 10x, 40x and 100x (oil) Achromatic
Condenser:  Brightfield Abbe – N.A. 1.25, precentred, focusable with iris diaphragm and filter holder
Stage:  160 x 140mm with built-in mechanical stage and slide holder, 75 x 50mm movement, Vernier scale
Focusing Knobs:  Coaxial coarse and fine with stop
Illumination:  LED 3W with intensity control (Halogen also available)
Mains Power:  100 – 240V, 50 / 60Hz
Supplied With:  Immersion oil (5ml), blue filter, dust cover, power cord with unique ‘self-store’ system and instruction manual
