£7,612.11

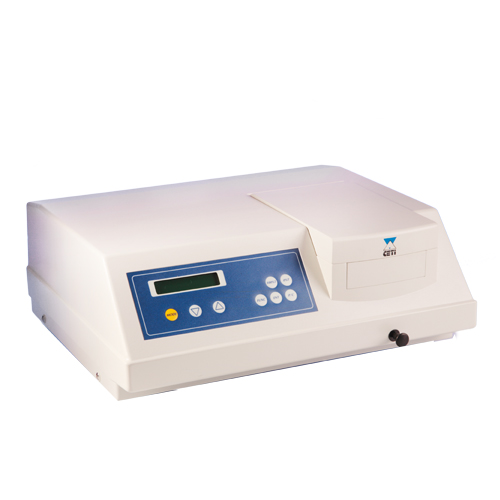

With microprocessor control and a 2 line, 20 character LCD display, the Ceti MD-2100UV UV-Visible Single Beam Spectrophotometer is ideal for carrying out tests performed in environmental protection, water, biochemistry, clinical, food & beverage and industrial laboratories.
With microprocessor control and a 2 line, 20 character LCD display, the Ceti MD-2100UV UV-Visible Single Beam Spectrophotometer is ideal for carrying out tests performed in environmental protection, water, biochemistry, clinical, food & beverage and industrial laboratories.
RS232 analogue output and optional software available.
| Pack Size | 1 |
|---|
All Ceti spectrophotometers come complete with microprocessor control offering fully automated functions including auto self test. RS232C analogue output and optional software is available.
The instruments feature a large sample compartment that will accept 5mm to 100mm pathlength rectangular cuvettes.
These units are ideal for the many tests performed in environmental protection, water, biochemistry, clinical, food, beverage and industrial laboratories. All units have modes for absorbance, %T and concentration measurements.
Calibration is performed against a ‘blank’ (Abs and %T) and a standard or factor for concentration. Wavelength selection is made electronically via a finely geared stepper motor.
Basic Testing Mode:
Basic Measurement: Photometeric measurement (A/T), concentration measurement (C)
Concentration Measurement: Slope method (C = K x A), standard curve method
Software Functions: Win-spec workstation, SP-1.33EN. Photometric analysis: T, A, and C
Main Specifications:
Grating System (l/mm): 1200
Mode: Transmittance, absorbance, concentration
Display: 2 x 20 character LCD with backlight function
Light Source: 6V/10W Halogen lamp (2000h)
Sample Compartment (l x w): 100 x 50mm optical path
Standard Cell Configuration: 10mm glass cell (4pcs)
Power Requirements: 110/220V AC, 50/60Hz, ± 10%
Dimensions (l x w x h): 475 x 420 x 180mm
Net Weight (kg): 12
Photometric Performance:
Photometric Range: 0 – 125%T, -0.097 – 3.000A
Photometric Accuracy: ± 0.5%T
Photometric Repeatability: 0.3%T
Stability: ± 0.002A/hr. at 500mm after warming up for one hour
Display: 2 x 20 digital LCD displayer
Optical Performance:
Type: Single Beam
Optical System: Littrow type optic system with 1200 grooves/mm diffraction grating monochromatic
Spectrum Bandwidth (nm): 4
Wavelength Range (nm): 190-1000
Wavelength Accuracy (nm): ± 2
Wavelength Repeatability (nm): ≤ 1
Standard Configuration:
• 10mm manual four-cell holder (1pcs)
• 10 x 10 x 45mm standard glass/quartz cuvettes (4pcs/2pcs)
• RS-232C connection cord
• Power cable, user manual, operation manual, win-spec software 2.33EN
Extended Function:
• Automatic multi-cells holder.
• Micro-volume testing.
• Constant temperature testing.
• USB communication port.
Accessories for Choice:
• Automatic multi-cells holder.
• Electronic constant temperature cells holder.
• Water cycling constant temperature cells holder.
• 5 – 100mm light path manual multi-cells holder.
• Micro cell holder with 1 – 4mm slit single cell.
• 100 – 200µl ultra-micro cell holder.
• Cuvettes with different specifications.
• USB communication port.
