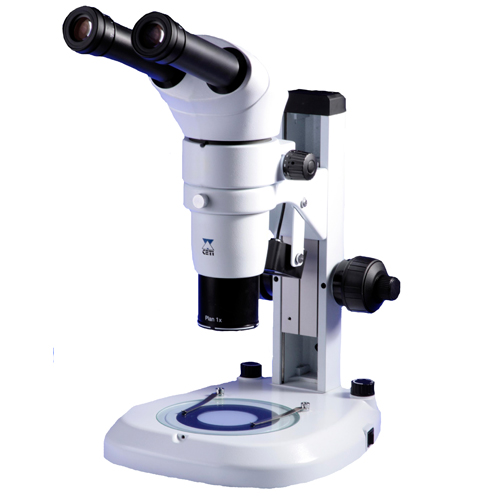

Ceti Varizoom-10 Binocular Stereo Microscope

SKU: 7700.0000M
BRAND:

£5,055.13

The Ceti Varizoom-10 Binocular Stereo Microscope is one of our highest specification stereoscopic zoom microscopes with a parallel zoom system utilising optics of the highest quality.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

The Ceti Varizoom-10 Binocular Stereo Microscope is one of our highest specification stereoscopic zoom microscopes with a parallel zoom system utilising optics of the highest quality.

A sturdy, rectangular focusing mount enables stability whilst zooming and focusing and the broad stand provides a comfortable base when manipulating samples.

Integrated, directional episcopic LED lighting brightly illuminates the sample without the need for awkward goose neck light guides and the transmitted LED lighting provides cool lighting, especially important when working with biological or heat-sensitive samples. Separate intensity controls are located at the rear of the stand so they do not encroach into the working area.

Additional information

Pack Size

1

Features

• Broad, flat base for comfortable working
• Super widefield 10x, FN 22 eyepieces for maximum field of view
• Wide magnification zoom range of 4x to 320x (8x – 80x as standard) utilising parallel zoom optics
• Optional eyepieces and objectives to easily adjust the zoom magnification range
• Dual LED illuimination with separate intensity controls

Specification

Optical Head

Binocular, inclined at 20°

Interpupillary Distance Adjustment (Siedentopf Type):  55 to 75mm

Dioptre adjustment on both eyepiece tubes

Eyepieces:  10x / 22mm super widefield

Zoom Ratio:  10:1

Magnification Range (standard):  8x to 80x

Magnification Range (total, with optional lenses):  4x to 320x

Working Distance:  78mm (with Plan Apo 1x / WF)

Focusing Mount:  Rectangular support with dual coarse and fine focusing knobs and tension control

Stage:  Frosted glass/black and white contrast plate and 2 slide clip holders

Illumination

Episcopic:  Directional 5W LED

Transmitted:  5W LED

Mains Power:  220 – 240V / 50 – 60Hz

Supplied With:  Two rubber eyecups, dust cover, instruction manual and one blue filter
