Description

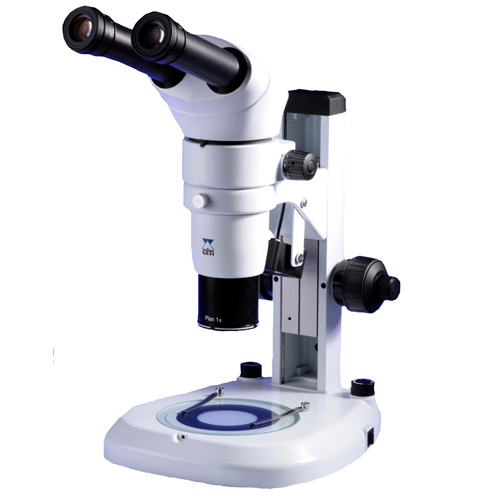

The Ceti Varizoom-6 Binocular Stereo Microscope is one of our highest specification stereoscopic zoom microscopes with a parallel zoom system utilising optics of the highest quality.
A sturdy, rectangular focusing mount enables stability whilst zooming and focusing and the broad stand provides a comfortable base when manipulating samples.
Integrated, directional episcopic LED lighting brightly illuminates the sample without the need for awkward goose neck light guides and the transmitted LED lighting provides cool lighting, especially important when working with biological or heat-sensitive samples. Separate intensity controls are located at the rear of the stand so they do not encroach into the working area.
Features
• Broad, flat base for comfortable working
• Super wide-field 10x, FN 22 eyepieces for maximum field of view
• Wide magnification zoom range of 4x to 192x (8x – 48x as standard) utilising parallel zoom optics
• Optional eyepieces and objectives to easily adjust the zoom magnification range
• Dual LED illuimination with separate intensity controls
Specification
Optical Head
Binocular, inclined at 20°
Interpupillary Distance Adjustment (Siedentopf Type): 55 to 75mm
Dioptre adjustment on both eyepiece tubes
Eyepieces: 10x / 22mm super widefield
Zoom Ratio: 6:1
Magnification Range (standard): 8x to 48x
Magnification Range (total, with optional lenses): 4x to 192x
Working Distance: 78mm (with Plan Apo 1x / WF)
Focusing Mount: Rectangular support with dual coarse and fine focusing knobs and tension control
Stage: Frosted glass/black and white contrast plate and 2 slide clip holders
Illumination
Episcopic: Directional 5W LED
Transmitted: 5W LED
Mains Power: 220 – 240V / 50 – 60Hz
Supplied With: Two rubber eyecups, dust cover, instruction manual and one blue filter
