Christ Beta 2-8 LSCbasic Freeze Dryer, -85 °C Ice Condenser, 8 Kg Ice Capacity

SKU: 102421
BRAND:

POA

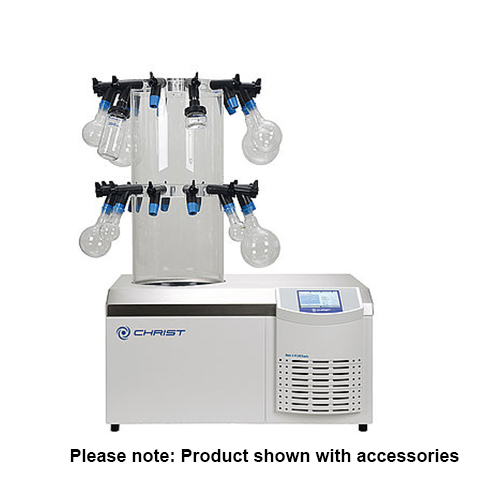

CHRIST Beta 2-8 LSCbasic Freeze Dryer is a compact benchtop unit with a -85 °C ice condenser and 8 kg ice capacity.

Use this quote list to submit your required products to Medline in order for a quotation.

Description

The Beta 2-8 LSCbasic Freeze Dryer is a compact benchtop unit for the effective drying of relatively large specimen quantities. The LSCbasic user interface makes the work simple. You can choose from a wide range of configurations to adapt the freeze dryer optimally to your specific needs. Condenser temperature of -85 °C for drying samples with low eutectic points. The ice condenser capacity is 8 litre.

The CHRIST Beta 2-8 LSCbasic Freeze Dryer can be configured to dry samples on unheated shelves. Also compatible with the large capacity front loading LyoCube system. Attachments for ampoules, round bottomed flasks, wide-necked filter bottles are also possible. Please contact us to discuss your application and to request a quotation.

Features

  • LSCbasic controller
  • Double chamber method
  • Max. 12 connections
  • Standard bench-top system
  • 3 or 5 unheated shelves, 12 ports
  • -85 °C for drying of samples with low eutectic points
  • Display of vacuum, sample temperature, ice condenser temp, run time
  • Vacuum control option
  • Ethernet communication port
  • Numerous configurations and accessories available including attachments for ampoules, round bottomed flasks, wide-necked filter bottles
  • Drying manifold for eight round-bottom flasks, wide-mouth filter bottles or ampoules available
  • Complete system includes the vacuum pump

Specification

Ice Condenser Capacity: 8 kg
Ice Condenser Performance: 6 kg / 24 h
Ice Condenser Temperature :-85 °C
Controller: LSCbasic
Double Chamber Method
Dimensions of Base Unit (WxHxD): 780 x 415 x 540 mm
Weight: 78 kg
