Description

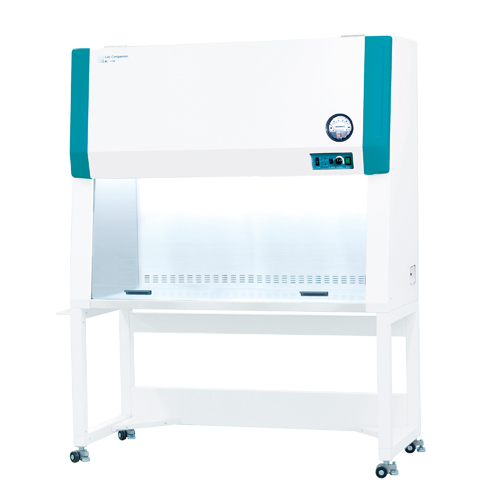

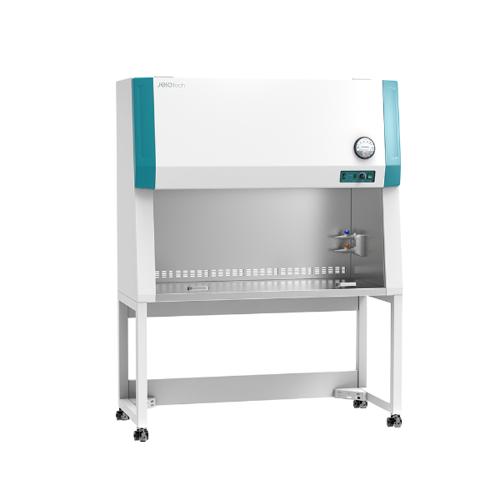

With its vertical laminar air flow, Jeio Tech’s BC-11B Vertical Laminar Flow Cabinet – Analogue Control offers a quick operation with the use of its simple adjustable analogue controls. High efficiency HEPA filter, for particles from 0.3 microns. Nominal downflow velocity of 0.3m/s. Ergonomic 5 degree slope at front for maximum user comfort. It also comes with an ISO Class 4 (US Class 10) HEPA filter, the air from which minimises cross contamination in the work space and provides an abrasive-free working environment. Suitable for a variety of test applications such as plant tissue culture research and syringe filling.
Please Note: Vertical Laminar Flow Cabinets offer product protection ONLY! If you require product AND user protection you should choose a Biological Safety Cabinet (Class II Cabinet)
Features
Performance
• ISO Class 4 (US Class 10) HEPA filter for optimal protection against cross-contamination
• 0.3µm and larger particulates are removed with 99.9% efficiency, leak-tight HEPA filter which satisfies Class 10 (US Federal Standard 209E). The average life span of the HEPA filter is 3 years depending on the test room conditions)
• High-quality polyester fibre per filter for trapping larger particles and increasing the life of the main HEPA filter
• Exclusive diffusing muffler structure forms high quality laminar flow
• Quiet and comfortable working environment (less than 65dB)
Convenience
• Built-in differential pressure gauge for easy checking of HEPA filter condition
• Comfortable front access to cartridge type of filters for easy replacement
• Easy blower speed adjustment via the control panel
• Highly durable, rust-free and easy-to-clean grade 304 stainless steel work surface
• The inner left side magnetic board allows some memos and small tools
Safety
• UV-blocking and impact-resistant tempered glass door
• If the sash is opened during UV lamp operation, the UV lamp automatically turns off to protect users
• Lighting mode selection by 3-position toggle switch (UV / OFF / fluorescent) preventing harmful UV exposure
• Smoothly sliding front door stoppable at any height for user’s safety and easy movement of equipment into the workspace
• Protection against over-current
Specification
Air Flow Type: Vertical Laminar Flow
Air Volume, minimum/maximum (cmh): 0 to 2040
Laminar Airflow Velocity (m/s): 0.45
Air Cleaniness within work space: ISO 14644-1 class 4, US Federal Standard 209E class 10
Noise Level (dB): Typically <65
Filters
HEPA Filter: Typical efficiency of 99.99% on 0.3µm (US MIL-STD-282); Micro glass fibre Media, Particle board, AL separator, Neoprane gaskets
Pre-Filter: Polyester fibres with a filter efficiency of 85% (A-F-I TEST); Aluminium frame, polyester media (Pre-filter)
Construction
Main Body: Powder coated steel
Work Surface: Stainless steel, grade 304, brushed finish
Windows: Colourless and transparent UV absorbing 5mm tempered glass
Illumination
Intensity (lux): >650
Fluorescent Lamp (W): 2 x 30
UV Lamp (W): 1 x 30
Electric Socket: 1 x 230V
Dimensions; W x D x H (mm)
Internal: 1245 x 570 x 670
External without Stand: 1435 x 647 x 1150
External with Stand: 1435 x 647 x 1870
Weight (Kg)
Cabinet: 185
Cabinet and Stand: 215
