Description

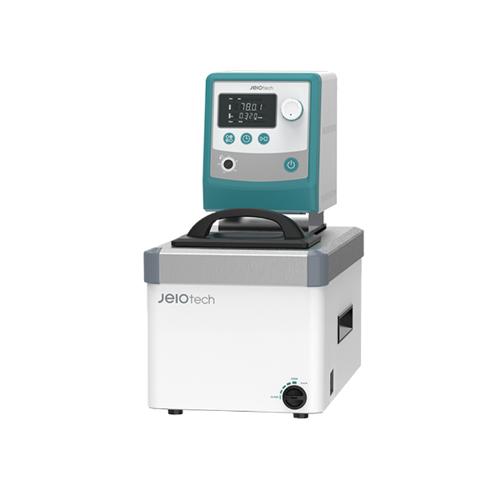

Jeio Tech’s CW3-05 Heating Bath Circulator, with a capacity of 5 litres, provides internal and external circulation with its powerful pumping capability for applications in medicine, pharmacology and bioengineering.
Accurate, stable and efficient temperature management is ensured by using a powerful variable-speed pump. A bright VFD display with a quick adjustable dial knob (0.1°C resolution) is included, along with an RS-232C interface, handles for convenient handling and transport, dual wait on/off timer modes (1min to 99hr 59min) and a convenient memory function of up to three frequently set temperatures. Safety is ensured with over-temperature and over-current protection and a keypad lock prevents accidental changes.
We also have a range of accessories available.
Features
Intelligent Programme Control
• 10 programmes available for temperature ramp up and dwell control
• 10 steps per programme
• Stored programmes are easily linkable
• Programmes can be repeated up to 99 cycles
• Pre-heating and heating time are settable before programme starts
Performance
• Temperature range from ambient +10°C and 150°C
• Microprocessor PID control
• Three point temperature calibration/automatic tuning/automatic run
• Accurate, stable, and efficient temperature management by using a powerful variable-speed pump (1 to 3 steps of pump for internal circulation and 4 to 5 steps for external circulation)
• Powerful pump pressure and flow rate throughout the whole temperature range
Convenience
• Bright VFD display with quick adjustable dial knob (0.1°C resolution)
• Dual wait on/off timer modes (1min to 99hr 59min)
• Convenient memory function of up to three frequently set temperatures
• Corrosion-resistant, leak-proof, round-cornered, and easy-to-clean stainless steel bath with easy access drain valve
• Built-in RS-232 port and USB port for external control and data collection
• Side handles enable convenient handling and transport
Safety
• Isolated design of agitator, heater, and sensor by a baffle plate minimising the turbulence in the bath fluid and also to protect users and samples against direct contact
• Complete safety precaution system with warning alarms (low fluid level and dry-running, over-temperature, over-current)
• Keypad lock function prevents accidental changes during operation
Specification
Volume (L): 5
Temperature (°C)
Range: Amb. +5 to +150
Accuracy: ±0.05
Pump
Pressure (PSI): 5.9
Max. Flow Rate (l/min): 28
Dimensions; W x D x H (mm): 228 x 395 x 424
Weight (Kg): 12.5
