Description

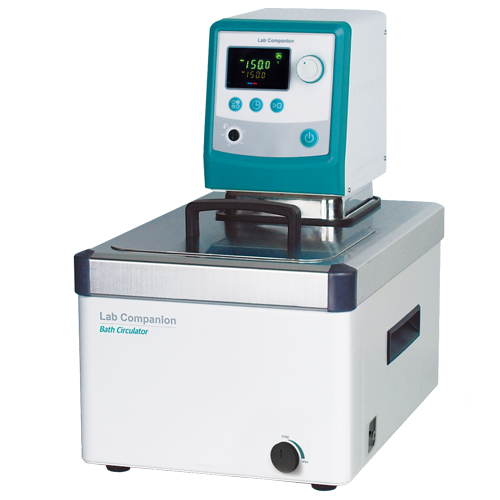

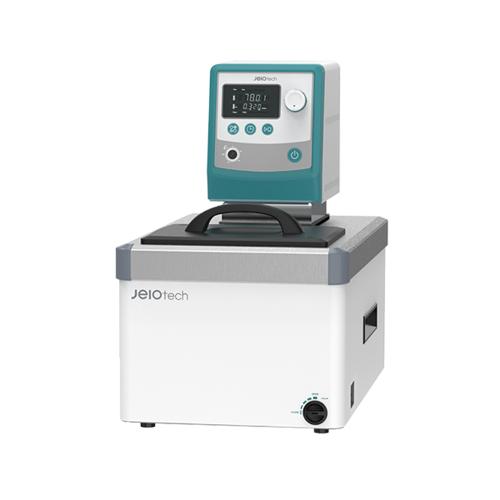

Jeio Tech’s CW3-10 Heating Bath Circulator, with a capacity of 10 litres, provides internal and external circulation with its powerful pumping capability for applications in medicine, pharmacology and bioengineering.
Accurate, stable and efficient temperature management is ensured by using a powerful variable-speed pump. A bright VFD display with a quick adjustable dial knob (0.1°C resolution) is included, along with an RS-232C interface, handles for convenient handling and transport, dual wait on/off timer modes (1min to 99hr 59min) and a convenient memory function of up to three frequently set temperatures. Safety is ensured with over-temperature and over-current protection and a keypad lock prevents accidental changes.
We also have a range of accessories available.
Features
Intelligent Programme Control
• 10 programmes available for temperature ramp up and dwell control
• 10 steps per programme
• Stored programmes are easily linkable
• Programmes can be repeated up to 99 cycles
• Pre-heating and heating time are settable before programme starts
Performance
• Temperature range from ambient +10°C and 150°C
• Microprocessor PID control
• Three point temperature calibration/automatic tuning/automatic run
• Accurate, stable, and efficient temperature management by using a powerful variable-speed pump (1 to 3 steps of pump for internal circulation and 4 to 5 steps for external circulation)
• Powerful pump pressure and flow rate throughout the whole temperature range
Convenience
• Bright VFD display with quick adjustable dial knob (0.1°C resolution)
• Dual wait on/off timer modes (1min to 99hr 59min)
• Convenient memory function of up to three frequently set temperatures
• Corrosion-resistant, leak-proof, round-cornered, and easy-to-clean stainless steel bath with easy access drain valve
• Built-in RS-232 port and USB port for external control and data collection
• Side handles enable convenient handling and transport
Safety
• Isolated design of agitator, heater, and sensor by a baffle plate minimising the turbulence in the bath fluid and also to protect users and samples against direct contact
• Complete safety precaution system with warning alarms (low fluid level and dry-running, over-temperature, over-current)
• Keypad lock function prevents accidental changes during operation
Specification
Volume (L): 10
Temperature (°C)
Range: Ambient +10 to +150
Accuracy: ±0.05
Pump
Pressure (PSI): 5.9
Max. Flow Rate (l/min): 28
Dimensions; W x D x H (mm): 289 x 450 x 444
Weight (Kg): 15
