Description

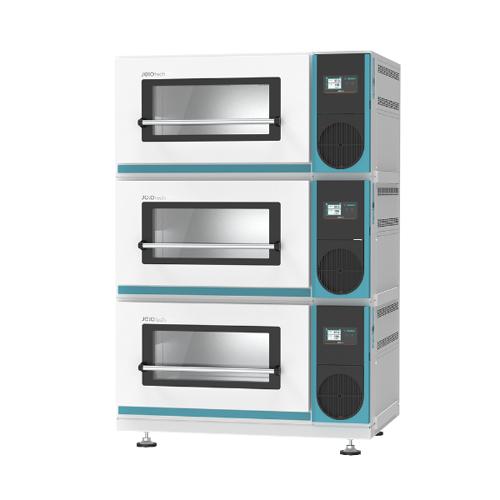

Maximise your laboratory space with the Jeio Tech ISS-7200 Stackable Incubator Shaker. This large, multi-purpose incubator shakers allows the user to freely organise different sample sizes and can stack up to three units. It can accommodate, for example, six 4 litre flasks and also thirty-nine 250ml flasks. If you decide to stack all three units, you can triple the capacity, although the highest rpm will be reduced. The incubator shaker’s door is opened upwards and stays open for hands-free handling. A slide type universal platform* will let you easily access all of your samples, even ones placed at the back. An intuitive touch-screen LCD controller with easy icons and logical menus is included.
*Universal platform must be ordered separately.
Features
Performance
• Temperature Range: Ambient +10°C to +80°C
• Competitive high shaking speed up to 300rpm (stackable up to 200rpm)
• Microprocessor PID control
• Three point temperature calibration/automatic tuning
• Wide speed range even with heavy workload. Ideal DD (Direct Drive) brushless motor and triple cam system support heavy load, quiet, maintenance-free operation and deliver high torque at high speeds and smooth rotation
• Best effort run function intelligently manages its rpm to keep shaking even workload is out of its capacity. Automatic shaking speed adjustment in case of excessive workload such as unbalanced load placement, unusual vibrations caused from unstable floor or external shock
• Pleasant test environment by the smooth acceleration and deceleration control. Smooth start and stop function prevents chemical spills from flasks or test tubes
• High-velocity fan ensures uniform temperature distribution and rapid thermal recovery after the door is opened
• Air-tight silicone door seal to provide excellent temperature uniformity
Convenience
• Intuitive touch-screen LCD controller with easy icons and logical menus
• Easy-set digital timer for shaking operation (1min to 999hr 59min)
• Wide sample monitoring. Clear observation of samples without affecting inner chamber’s environment thanks to the transparent viewing window with bright LED lamps
• Repetitive tasks can be easily performed as the platform stops where it starts. Stopping the shaking platform always at the same position is highly beneficial for automated closing or sampling process
• Built-in electrical outlet with a safety cover inside the chamber
• Corrosion resistance stainless steel interior
• Easy-access drain system with a quick disconnect valve offers great convenience to clean up spills
• Built-in RS-232 port and USB port for external control and data collection
• The unit comes with retractable foot caster, beneficial for easy mobility during installation or relocation
Safety
• Automatic run after power interruption
• Temperature and shaking speed deviation alarm
• Over-current protection
• Triple Independent Temperature Monitor System: Temperature deviation alarm (high/low), electronic temperature limiter (high/low) and mechanical over-temperature limiter (high).
Specification
Temperature (°C)
Range: Amb. +10 to 80
Fluctuation at 37°C: ±0.1
Variation at 37°C: ±0.5
Shaking System
Orbit Diameter (mm): 50.8
Speed Range, unstacked (rpm): 30 to 300
Speed Range, stacked (rpm): 30 to 200
Timer: 1min to 999hr 59min
Max. Load, unstacked (Kg): 20 at 300rpm
Max. Load, stacked (Kg): 15 at 200rpm and 20 at 150rpm
Dimensions (mm)
Platform; W x D: 755 x 520
Internal; W x D x H: 809 x 624 x 393
External; W x D x H: 1310 x 996 x 755
Weight (Kg): 375
