Description

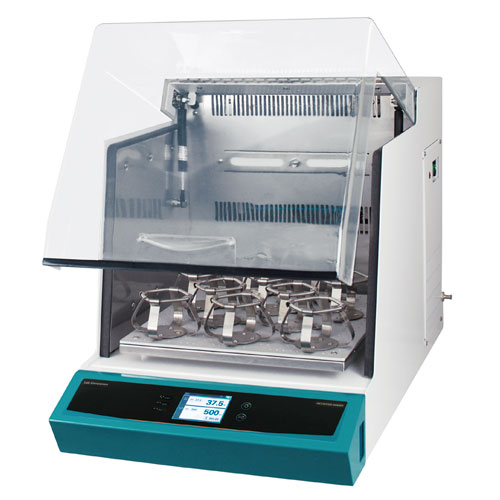

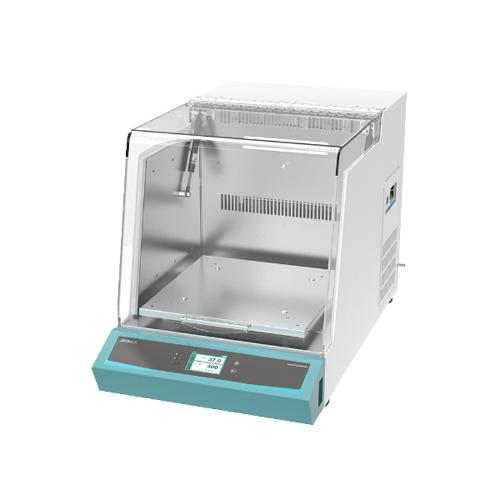

With its wide speed range, the Jeio Tech IST-3075 Bench Top Incubator Shaker is a digital incubating/refrigerating bench top orbital shaker that allows laboratories to carry out effective sample preparation in a temperature-controlled environment. Its maintenance-free BLDC motor produce a quiet but powerful shaking motion. This shaking incubator also comes with an intuitive touch-screen LCD controller with easy icons and logical menus, along with a simple digital timer for shaking operations.
Please note: No platform is supplied with this shaker. A Universal Platform or Universal Attachment must be purchased to allow the shaker to be used. We also have a wide range of accessories available – please contact us for details.
Features
Performance
• Temperature range from ambient +5°C to +80°C
• Competitive high shaking speed up to 500rpm
• Orbital shaking motion in 19mm diameter
• Microprocessor PID control
• Three point temperature calibration/automatic tuning
• Wide speed range even with heavy workload. Equipped with a maintenance-free BLDC motor to generate a smooth, quiet, uniform and yet powerful shaking motion
• Best effort run function intelligently manages its rpm to keep shaking even workload is out of its capacity. Automatic shaking speed adjustment in case of excessive workload such as unbalanced load placement, unusual vibrations caused from unstable door or external shock
• Pleasant test environment by the smooth acceleration and deceleration control. Smooth start and smooth stop function prevents chemical spills from flasks or test tubes
• High-velocity fan ensures uniform temperature distribution and rapid thermal recovery after the door is opened
• Air-tight silicone door seal to provide excellent temperature uniformity
Convenience
• Intuitive touch screen LCD controller with easy icons and logical menus
• Easy-set digital timer for shaking operation (1min to 999hr 59min)
• Wide sample monitoring and convenient sample loading. Convenient sample monitoring without affecting inside environment thanks to the three side transparent acrylic lid with bright LED lamps. Gas spring lid supports providing smooth motion, soft opening and closing
• Repetitive task can be easily performed as the platform stops where it starts. Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process
• Corrosion resistance stainless steel interior
• Built-in RS-232 port and USB port for external control and data collection
Safety
• Automatic run after power interruption
• Temperature and shaking speed deviation alarm
• Over-current protection, stalled platform check
• Mechanical over-temperature protection device
• Audible and visible open door alarms
Specification
Temperature (°C)
Range: Amb. +5 to +80
Fluctuation at 37°C: ±0.1
Variation at 37°C: ±0.5
Shaking System
Motion Type: Orbital
Orbit Diameter (mm): 19.1
Speed Range (rpm): 20 to 500
Max. Load (Kg): 10 at 500rpm and 15 at 400rpm
Dimensions (mm)
Platform; W x D: 350 x 350
Internal; W x D x H: 410 x 410 x 320
External; W x D x H: 440 x 785 x 510
Weight (Kg): 65
