Description

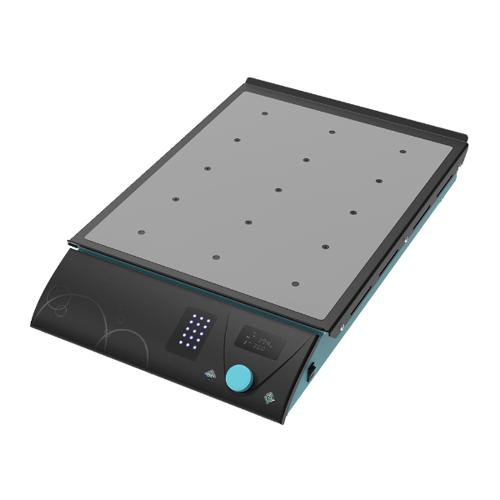

With its speed and time setting modes, Jeio Tech’s MS-53MH Multi-Position Hotplate Stirrer allows you to carry out simultaneous independent stirring at a maximum of 15 positions with stable heating at speeds from 30 to 2000rpm. This hotplate stirrer has a distinctive digital display with various settings – there are multiple speed and time setting modes, allowing various ways of multi-position stirring to meet users’ demands – single point, multiple point, whole row, whole column etc.
The intuitive, easy-to-read VFD control panel also features bright and vivid LED position indicating lamps for your convenience. Stirring is controlled by a BLDC motor and strong magnet, guaranteed to deliver high-speed and effective coupling to magnetic stirrer bars. This lab stirrer has been carefully constructed to save internal components from any spills. A non-slip silicone mat is attached to the top plate to prevent unintended slips.
Features
Performance & Convenience
- Ideal for multiple sample testing under the same conditions
- User-friendly operation and time setting modes single point, multiple point, whole row, whole column, etc.
- Fast and precise stirring operations are enabled by BLDC motor and strong magnetic coupling
- Smooth-start mechanism provides virtually no decoupling of stir bars even with viscous media
- Instant halt of the stirring operation
- Easy-to-read VFD and intuitive control panel
Safety
- Unit is designed to protect internal components from accidental spills
- Non-slip silicone plate mat is attached to the top plate to prevent unintended slips
- Built in thermal shut off and current limit protection
Specification
Temperature Range (°C): Ambient to 120
Display: VFD & LED
Power (W): 1000
Speed Range (rpm): 30 to 2000
Control: Feedback control with PID
Stirring Positions: 15
Point Distance; W x D (mm): 117 x 90
Timer: 1min to 99hr 59min
Max. Load (Kg): 30
Top Plate Material: Aluminium (plus silicone mat)
Dimensions (mm)
Top Plate; W x D: 385 x 493
Main Unit; W x D x H: 395 x 614 x 104
Weight (Kg): 15
