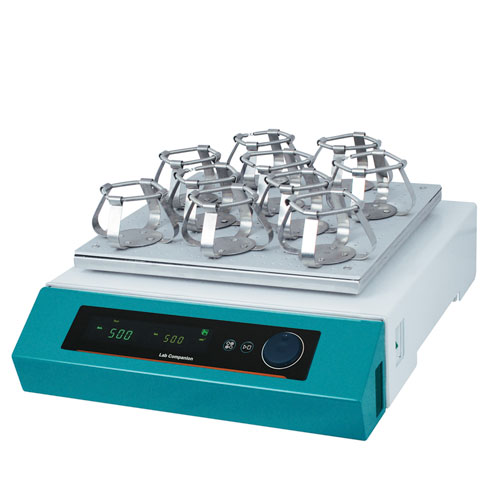

Jeio Tech OS-3000 Dual Action Shaker

Description

Jeio Tech’s OS-3000 Dual Action Shaker features selectable dual shaking motions, orbital or reciprocating. The microprocessor PID controller controls the shaking speed via the maintenance-free BLDC motor up to 500rpm and allows vibration-free shaking at low speed. Jeio Tech’s unique VFD is bright, clear and easy to read. An RS-232 interface and USB port are included for external control and data collection.

Please note: No platform is supplied with this shaker. A Universal Platform or Universal Attachment must be purchased to allow the shaker to be used. We also have a wide range of accessories available – please contact us for details.

Additional information

Pack Size	1

Features

Performance

Orbital, reciprocal or dual orbital/reciprocal action depending on the model
Microprocessor PID control with shaking speed calibration
Choice of shaking amplitude
Wide speed range even with heavy workload
Equipped with a maintenance-free BLDC motor to generate smooth, quiet, uniform and powerful shaking motion
Intelligent feedback mechanism maintains constant speed whilst under load
Low-profile design minimises vibration or Intelligent feedback mechanism maintains constant speed whilst under load

Convenience

User friendly control panel with unique VFD (bright, clear, easy to read) and durable membrane touch switch and control knob
Easy-set digital timer (1min to 999hr 59min)
Repetitive tasks can be easily performed as the platform stops in the same position as it starts, making it beneficial for automated dosing or sampling processes
Speed is set and displayed in increments of 1rpm
Speed increment interval can be set from 1, 5, or 10rpm
RS-232 and USB ports for external control and data collection
Compact design with interchangeable platforms to accommodate various sizes of vessels (flasks up to 6L)

Safety

Automatic run after power interruption
Shaking speed deviation alarm
Over-current protection
Stalled platform check
Slow start and gentle stop to protect delicate cells and to help prevent spillages
Suitable for use in cold rooms and non-CO₂ incubators

Specification

Motion Type: Orbital or Reciprocating (selectable)

Maximum Load (Kg)

Orbital: 10 at 500rpm

Reciprocal: 8.5 at 500rpm

Orbit Diameter (mm): 19.1 (25.4 available)

Speed Range (rpm): 20 to 500

Timer: 1min to 999hr 59min

Dimensions; W x D x H (mm): 409 x 508 x 141

Weight (Kg): 28

Downloads

Click here for download View File
