Description

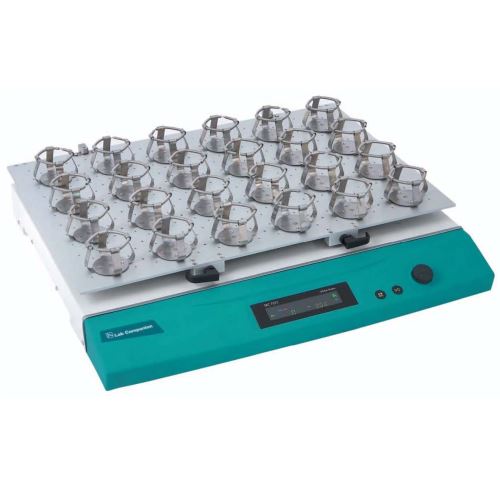

The innovative Jeio Tech SKC-7075 Advanced Orbital Shaker has a wide speed range, offering laboratories a reliable performance. This lab shaker is specially designed to carry out continuous heavy-duty and trouble-free operations. It can hold up to 102 x 250ml flasks simultaneously on a dual universal platform where the direct drive brushless motor and triple cam system can support heavy, quiet, maintenance-free operations and give the shaker high torque at a high speed and gentle rotation.
Please note: No platform is supplied with this shaker. A Universal Platform or Universal Attachment must be purchased to allow the shaker to be used. We also have a wide range of accessories available – please contact us for details.
Features
Innovative triple-cam shaking mechanism with offering reliable performance across a wide speed range. Specially designed to carry out heavy-duty and trouble-free operations continuously.
Performance
• Microprocessor PID control maintaining constant speed
• Competitive high shaking speed up to 500rpm. Also stable shaking is available even at low speed
• Wide speed range even with heavy workload. Ideal DD (Direct Drive) brushless motor and triple cam system support heavy load, quiet, maintenance-free operations and deliver high torque at high speeds and smooth rotation
• Best effort function intelligently manages its rpm to keep shaking even if workload is out of its capacity. Automatic shaking speed adjustment in case of excessive workload such as unbalanced load placement, unusual vibrations caused from unstable floor or external shock
• Pleasant test environment by the smooth acceleration and deceleration control. Smooth start and smooth stop function prevents chemical spills from flasks or test tubes
• Exceptional low-profile design (only 12cm from bottom to platform) minimises vibration or sliding caused by the high speed shaking motion
Convenience
• It is able to shake 102 x 250ml flasks simultaneously on a dual universal platform (optional)
• User-friendly control panel: Jeio Tech’s VFD (bright, clear, easy to read) and durable membrane touch switch and control knob
• Easy-exchangeable slide type universal platform reduces physical fatigue when handling the heavy load samples (optional)
• Repetitive tasks can be easily performed as the platform stops where it starts. Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process
• Variety of accessories are available to meet application demands
Safety
• Shaking speed deviation alarm
• Over-current protection
Specification
Control System: PID feedback control
Display: VFD
Shaking System
Motion Type: Orbital
Orbit Diameter (mm): 19
Speed Range (rpm): 30 to 500
Speed Accuracy at 100rpm: ±1
Weight limitations
0 kg: max 290 RPM
6.5 kg: max 250 RPM
13 kg: max 210 RPM
21.5 kg: max 140 RPM
28 kg: max 100 RPM
Dimensions (mm)
Platform; W x D: 755 x 520 (Small) and 885 x 520 (Large)
Main Unit; W x D x H: 582.8 x 618 x 122.2
Weight (Kg): 65
