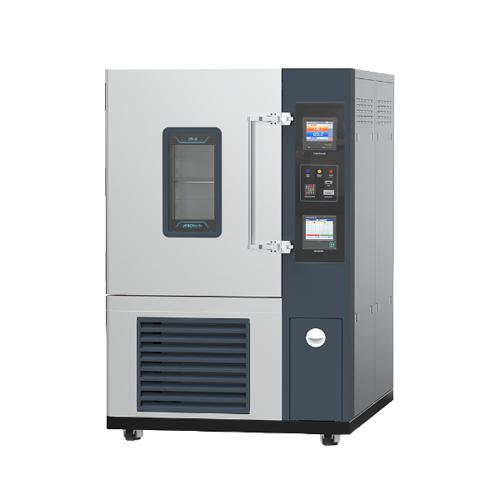

Jeio Tech TH-G-408, 408 Litre Floor Standing Temperature & Humidity Test Chamber

Specification

Volumes (L):  408

Controller:  Programmable, touch-screen controller (140mm colour monitor)

Temperature (°C)

     Range Without Humidity:  -40 to +150

     Range With Humidity:  +15 to +90

     Fluctuation at 40°C / 75%RH:  ±0.3

     Variation at 40°C / 75%RH:  ±0.5

Heating Time Without Humidity (min):  70 from -40°C to +120°C

Cooling Time Without Humidity (min):  75 from +20°C to -40°C

Humidity (%RH)

     Range:  25 to 95

     Fluctuation at 75%RH / 40°C:  ±0.4

     Variation at 75%RH / 40°C:  ±3

Refrigeration

     System:  Mechanical single stage refrigerator system

     Refrigerant:  R-507

Water Tank

     Capacity (L):  15 – cartridge type

     Water Quality:  pH 6.2 to 7.2 / Electrical conductivity <20µs/cm

Shelves

     No. of Wire Shelves (standard/max.):  2/10

     Distance Between Shelves (mm):  40

     Max. Load Per Shelf (Kg):  25

     Permitted Total Load (Kg):  65

Dimensions; W x D x H (mm)

     Internal:  600 x 850 x 800

     External:  1103 x 1359 x 1668

Viewing Window (mm):  200 x 330

Weight (Kg):  410

Ports

     Cable Port:  One Ø 50mm hole is provided. Optionally up to two additional holes, Ø 50mm or Ø 80mm, can be ordered.

     Interface Port:  RS-232C (RS-485 optional)
