Description

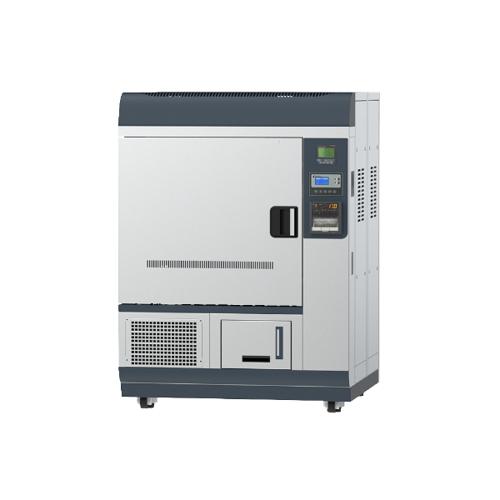

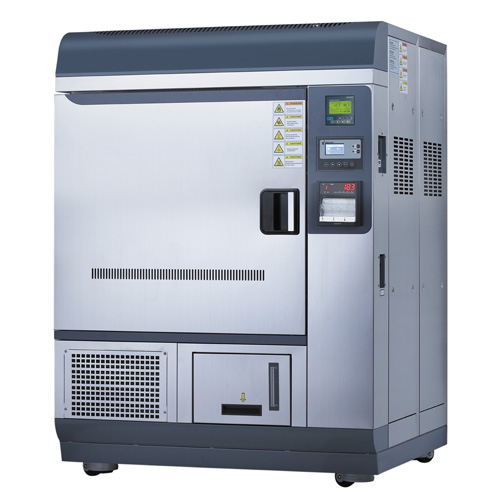

The Jeio Tech TH-ICH-300 Pharmaceutical Stability Test Chamber, with a capacity of 300 litres, contains a fine temperature and humidity control system suitable for carrying out long-term stability tests and an independent luminescence control system for photostability tests. Its fast humidity control is accomplished by making the humidification tank central to the chamber.
The operating process for stability tests can be seen through the test chamber’s graph mode for enhanced data examination. For photostability tests, this test chamber comes with a built-in UV and fluorescent lamp for aligned luminescence.
Specification
Volume (L): 300
Controller: PID control (LCD type)
Temperature (°C)
Range Without Humidity: -5 to +85°C without light and 0 to +85°C with light
Range With Humidity: +15 to +85°C with light
Fluctuation at 40°C / 60%RH: ±0.3
Variation at 40°C / 60%RH: ±0.5
Heating Time Without Humidity (min): 25 from +20°C to +85°C
Cooling Time Without Humidity (min): 35 from +20°C to +5°C
Humidity (%RH)
Range: 20 to 85
Fluctuation at 60%RH / 40°C: ±3
Variation at 60%RH / 40°C: ±5
Light Source (ICH Q1B Option 2)
Cool White: 6000 lux
Ultraviolet-A: 4.5 W/m2
Light Uniformity: VIS: ±10% and UVA: ±15%
Typical Time Required to Reach ICH Recommendation of 1.2 Million lux – hr: 184hr
Typical Time Required to Reach ICH Recommendation of 200 W-hr/m2: 40hr
Refrigeration
System: Air-cooled
Refrigerant: R-404A
Water Tank
Capacity (L): 15
Water Quality: pH 6.2 – 7.2 / Electrical conductivity <20µs/cm
Shelves
No. of Wire Shelves (standard/max.): 2/8
Distance Between Shelves (mm): 60
Max. Load Per Shelf (Kg): 25
Permitted Total Load (Kg): 75
Dimensions; W x D x H (mm)
Internal: 750 x 650 x 650
External: 1130 x 985 x 1520
Weight (Kg): 280
Ports
Cable Port: One Ø 50mm hole is provided. Optionally up to two additional holes, Ø 50mm or Ø 80mm, can be ordered.
Interface Port: RS-232C (RS-485 optional)
Electrical Requirements (230V, 1ph, 50/60Hz): 15.4A
