£25,902.75

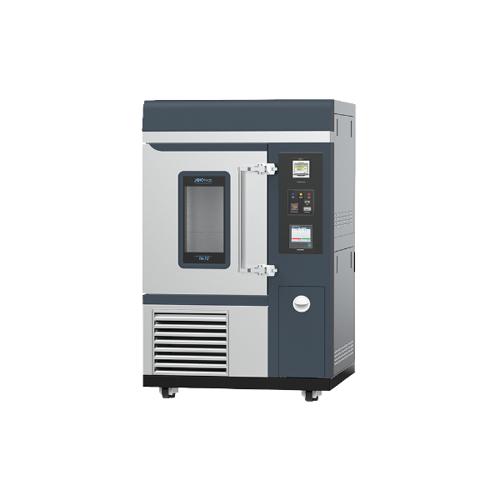

The Jeio Tech TH-TG-180 Floor Standing Temperature & Humidity Test Chamber, with a capacity of 180 litres, is an economical environmental test chamber that can be easily operated with its colourful, interactive touchscreen LCD controller.
The Jeio Tech 180 Litre Floor Standing Temperature & Humidity Test Chamber, with a capacity of 180 litres, is an economical environmental test chamber that can be easily operated with its colourful, interactive touchscreen LCD controller.
Performance
– Heat-resistant silicone packing completely blocks high heat leakage from the inner chamber – Two-point door latch also enhances tightness of door closure
– Even if the unit is operating at max. temperature, the surface of the unit doesn’t allow high temperatures above 60℃
Safety
Volume (L): 180
Controller: Programmable, touch-screen controller (140mm colour monitor)
Temperature (°C)
Range Without Humidity: -5 to +100
Range With Humidity: +10 to +90
Fluctuation at 40°C / 60%RH: ±0.3
Variation at 40°C / 60%RH: ±0.5
Heating Time Without Humidity (min): 50 from -5 to +100°C
Cooling Time Without Humidity (min): 120 from +100 to -5°C
Humidity (%RH)
Range: 10 to 95
Fluctuation at 60%RH / 40°C: ±2
Variation at 60%RH / 40°C: ±3
Refrigeration
System: Air-cooled
Refrigerant: R-507A
Water Tank
Capacity (L): 15
Water Quality: pH 6.2 – 7.2 / Electrical conductivity <20µs/cm
Shelves
No. of Wire Shelves (standard/max.): 2/7
Distance Between Shelves (mm): 60
Max. Load Per Shelf (Kg): 20
Permitted Total Load (Kg): 50
Dimensions; W x D x H (mm)
Internal: 500 x 600 x 600
External: 952 x 907 x 1503
Viewing Window (mm): 200 x 330
Weight (Kg): 220
Ports
Cable Port: One Ø 50mm hole is provided. Optionally up to two additional holes, Ø 50mm or Ø 80mm, can be ordered.
Interface Port: RS-232C (RS-485 optional)
Electrical Requirements (230V, 1ph, 50/60Hz): 12.3A
