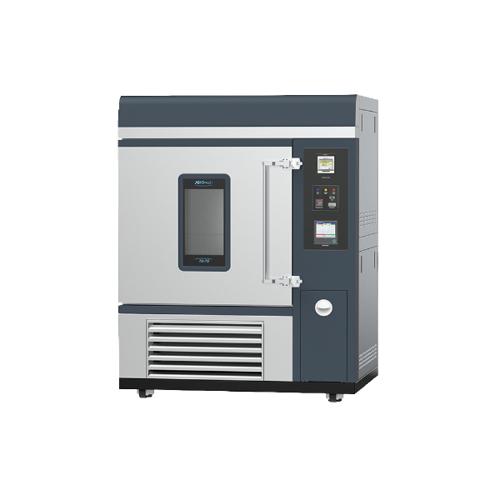

Jeio Tech TH-TG-300, 314 Litre Floor Standing Temperature & Humidity Test Chamber

Specification

Volume (L):  314

Controller:  Programmable, touch-screen controller (140mm colour monitor)

Temperature (°C)

     Range Without Humidity:  -5 to +100

     Range With Humidity:  +10 to +90

     Fluctuation at 40°C / 60%RH:  ±0.3

     Variation at 40°C / 60%RH:  ±0.5

Heating Time Without Humidity (min):  50 from -5 to +100°C

Cooling Time Without Humidity (min):  120 from +100 to -5°C

Humidity (%RH)

     Range:  10 to 95

     Fluctuation at 60%RH / 40°C:  ±2

     Variation at 60%RH / 40°C:  ±3

Refrigeration

     System:  Air-cooled

     Refrigerant:  R-507A

Water Tank

     Capacity (L):  15

     Water Quality:  pH 6.2 – 7.2 / Electrical conductivity <20µs/cm

Shelves

     No. of Wire Shelves (standard/max.):  2/8

     Distance Between Shelves (mm):  60

     Max. Load Per Shelf (Kg):  25

     Permitted Total Load (Kg):  65

Dimensions; W x D x H (mm)

     Internal:  748 x 600 x 700

     External:  1201 x 907 x 1525

Viewing Window (mm):  200 x 330

Weight (Kg):  250

Ports

     Cable Port:  One Ø 50mm hole is provided. Optionally up to two additional holes, Ø 50mm or Ø 80mm, can be ordered.

     Interface Port:  RS-232C (RS-485 optional)

Electrical Requirements (230V, 1ph, 50/60Hz):  14.5A
