Description

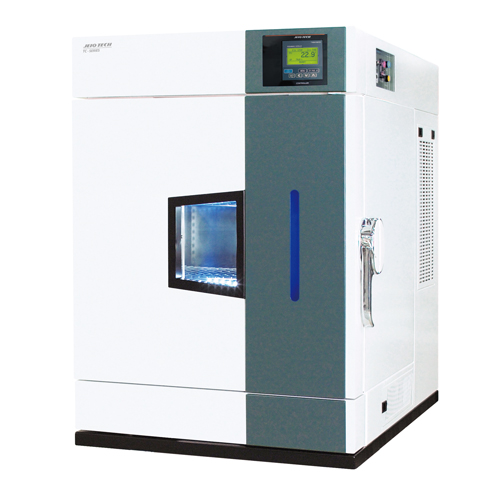

Maximise your laboratory’s workspace with the Jeio Tech TH3-KE-100, 100 Litre Bench Top Temperature & Humidity Test Chamber. With its wide temperature and humidity control range, this bench top chamber has the ability to deliver excellent environmental test results.
It also features a colourful, user-friendly LCD controller, an optional direct water system for carrying out long-term tests and an open door alarm. We also have a range of accessories (e.g. perforated shelves) available.
Features
Performance
- Microprocessor PID control with temperature calibration and automatic tuning
- Uniform temperature and humidity control guarantees reliable test result
- Air-tight door closure – heat-resistant silicone packing completely blocks high heat leakage from the inner chamber
- Water level condition is easy to check by the water level indicator on the front control panel
- Direct water system (optional) provides user great convenience when performing long-term tests
Safety
- Built-in door lock with key
- Automatic shut off after over-heat alarm
- Low and empty water level alarm
- Power supply leakage breaker
- Over-current protection
- Open door alarm
Convenience
- Compact design and quiet operation
- Corrosion resistance stainless steel chamber
- Operating condition is clearly shown by front LED indicator – three different coloured lights show chamber status (run, stop and power off)
- Clear observation of samples – tempered glass window with wire heater and lighting provides a clear view of samples in the chamber during testing
- Cable port (50mm diameter) for introduction of external probes or wires. Additional 50mm or 80mm diameter cable ports (optional) can be ordered
- Two type of stands for space-saving (optional) – single stand with a drawer provides storage space or two step stand accepts two units to save space
- User-friendly, colourful, touchscreen LCD controller
– Set point temperature and present temperature are clearly shown together on display
– Freely programmable
– Operating progress can be shown in graph mode for easy data understanding
– Automatic start/stop can be programmed for unattended operations
– Display indicates abnormal temperature changes or power failures
– Selective bilingual language support (Korean/English or English/Chinese, selectable only when placing an order)
– Temperature and other operating parameters can be recorded using a six channel digital recorder (optional)
– RS-232 communication port included as standard
– RS-485 communication port (optional) enables connection up to maximum 32 units. Simultaneous monitoring and operating of multiple units is an available feature
– Program patterns are simple to set
– Easy to check status of real-time operations
– Storage and documentation of programs
– Data with saving capabilities in Excel and text format
– Storage of program information, backup of value settings, recovery and temperature values
Specification
Volume (L): 100
Controller: Programmable, touch-screen controller (140mm colour monitor)
Temperature (°C)
Range Without Humidity: -40 to +150
Fluctuation at 25°C / 60%RH: ±0.3
Variation at 25°C / 60%RH: ±0.5
Heating Time Without Humidity (min): 60 from 0°C to +90°C
Cooling Time Without Humidity (min): 70 from +90°C to 0°C
Humidity (% RH)
Range: 20 to 95
Fluctuation at 60%RH / 55°C: ±1
Variation at 60%RH / 55°C: ±3
Water Tank
Capacity (L): 12
Water Quality: pH 6.2 to 7.2 / Electrical conductivity <20°C/cm
Shelves
No. of Wire Shelves (standard/max.): 2/10
Distance Between Shelves (mm): 20
Max. Load Per Shelf (Kg): 25
Permitted Total Load (Kg): 65
Dimensions; W x D x H (mm)
Internal: 500 x 380 x 530
External: 700 x 1110 x 1100
Viewing Window (mm): 170 x 229
Net Weight (Kg): 150
Ports
Cable Port: One Ø 50mm hole is provided. Optionally up to two additional holes, Ø 50mm or Ø 80mm, can be ordered.
Interface Port: RS-232C (RS-485 optional)
Electrical Requirements (230V, 1ph, 50/60Hz): 15.6A
