Description

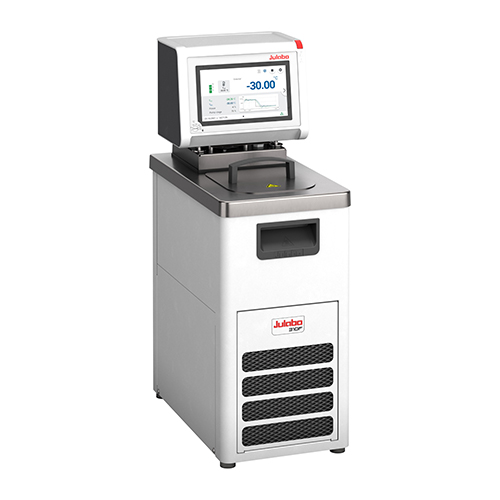

The Julabo MAGIO MS-310F refrigerated and heating circulator features strong pressure and suction pumps making it suitable for the highest demands for temperature control of external applications in basic research environments, materials testing, technical systems and more.
The MAGIO series offers high performance, premium quality and initiative operation. This model uses environmentally friendly natural refrigerant, R290.
Supplied with 2 barbed fittings for tubing 8 and 12mm ID. Pump connections are M16x1 male.
Specification
Temperature (°C)
Range: -30°C to +200
Setting Resolution: 0.01
Stability: ±0.01
Volume (L): 3 to 4
Pump
Flow Pressure (bar): 0.24 to 0.92
Flow Rate (l/min): 16 to 31
Max. suction (bar): -0.03 to -0.4
Heating Capacity (kW): 2
Cooling Capacity (Ethanol) (kW) 1
@ 20°C: 0.33
@ 0°C: 0.28
@ -10°C: 0.23
@ -20°C: 0.13
@ -30°C: 0.05
Cooling Capacity (Ethanol) (kW) 2
@ 20°C: 0.26
@ 0°C: 0.21
@ -10°C: 0.17
@ -20°C: 0.10
@ -30°C: 0.01
Timer (hr.min): 0.00 to 99.59
Usable Bath Opening (W x L / D) (mm): 130 x 150 / 150
External Dimensions W x L x H (mm): 370 x 590 x 690
Weight (Kg): 29
Barbed Fittings (ID) (mm): 8/12
Pump Connections: M16 x 1 (male)
Ambient Temperature (°C): +10 to +40
Cooling capacity 1 = capacity at minimum pump level, cooling capacity 2 = capacity at maximum pump level.
Performance specifications measured in accordance with DIN 12876. Cooling capacities up to 20°C measured with ethanol; over 20 °C with thermal oil unless otherwise specified. Performance specifications apply at an ambient temperature of 20 °C. Performance values may differ with other bath fluids.
Note about natural refrigerants:
Temperature control units using natural refrigerants are often subject to regulatory requirements regarding the installation site, operation, transport or disposal of the units.
