Description

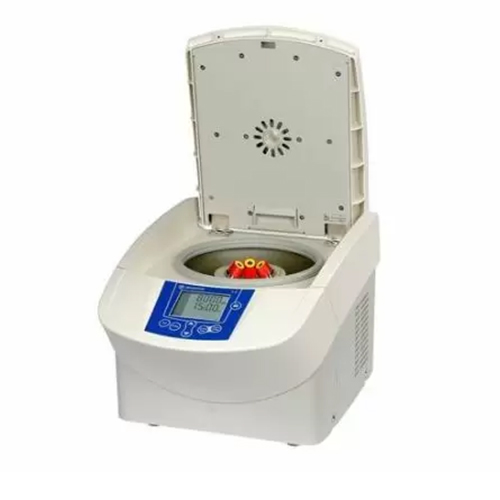

The Sigma 1-7 small, compact centrifuge is ideally suited to the separation of blood and urine samples in the clinical sector. The compact size with single fixed angle rotor is perfect for the separation of small and medium sized sample tubes. The centrifuge also has reasonably high RCF capability and is finished in a sturdy, high quality finish. The Sigma 1-7 generates exceptionally low vibrations and is quiet running.
This compact centrifuge is ideally suited to GP practice, surgeries and veterinary laboratories for the processing of blood samples in vacutainers and monovettes. The purpose-made fixed angle rotor will hold most types of conventional blood tubes for in-vitro diagnostic (IVD). The high RCF of 6,153 xg assists greatly in speeding up separation times. The short acceleration and braking times of 13 and 11 seconds, respectively, make results available in next to no time.
Supplied without a rotor.
Features
Small centrifuge for small sample volumes
Maximum capacity: 6 x 4/7 ml vacutainers, 10/12 ml monovettes, 6 x 15 ml
Spincontrol Basic controller
Clear visible LCD display
Compact, space-saving device
Ten programmable settings
Low noise
Short acceleration and braking times
Low temperature rise in continuous operation
Motorised lid lock and automatic lid unlocking
Zero-maintenance induction drive motor
Two acceleration and braking curves
Window in lid for external speed monitoring and service
Compliant with international standards (e.g. EN 61010-2-020)
Calibration certificate available at an additional cost – please enquire for a quote
Specification
Max. capacity (ml)
Fixed-angel rotor: 6 x 15
Max. RCF: 6,153
Maximum speed (rpm): 8,000
Minimum speed (rpm): 200
Noise level at maximum speed (approx.) (dB(A)):
Fixed-angle rotor 91429: 58
Max. acceleration time (s):
Fixed-angle rotor 91429: 13
Max. braking time (s):
Fixed-angle rotor 91429: 11
Power consumption (W): 55
Dimensions HxWxD (mm) 271x310x418
Height with open lid (mm): 527
Weight without rotor (kg): 13
