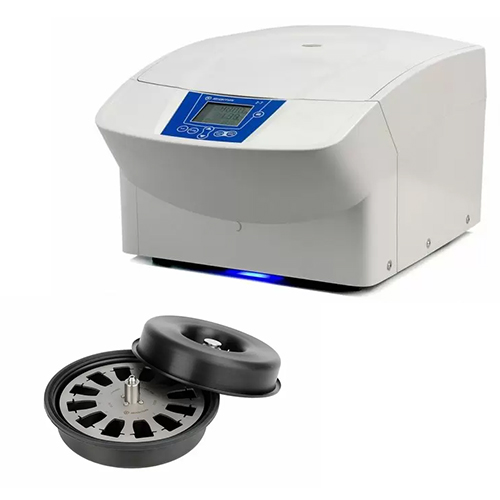

The Sigma 2-7 Cyto centrifuge combines the highlights of Sigma 2-7 with state-of-the-art cytocentrifugation technology. Rotors must be ordered separately.
Sigma’s specialist for cytocentrifugation combines the highlights of Sigma 2-7 with state-of-the-art cytocentrifugation technology.
Supplied without a rotor.
Available with closed rotor for Resospin® or Shandon™ clip systems as individual items or in packages of centrifuge, rotor, clips and consumables. Please enquire for more information.
Versatile centrifuge for cytocentrifugation and cell harvest
Closed, aerosol tight and autoclavable rotors
Rotors compatible with clip systems of RESOSPIN® or Shandon™
Tool-free cytorotor mounting
Extendable to laboratory centrifuge
Clear and convenient Spincontrol Basic control unit
Innovative LED running indicator, readily visible at a distance
User-configurable audible signal for keypress and end of run
Ten programs
Two acceleration and braking curves
Compact device
Low height for easy loading and unloading
Short acceleration and braking times
Automatic imbalance monitoring
Low noise level
Motorised lid lock and automatic lid opening
Low temperature rise in continuous operation
Automatic overspeed monitoring
Durable, easy-care stainless steel chamber
Window in lid for external speed monitoring
Produced in compliance with the latest national and international standards (e.g. EN 61010-2-020)
Calibration certificate available at an additional cost – please enquire for a quote
Max capacity (ml):
Cytology rotors 11260 / 11261: 12 clips
Swing-out rotor 11071 with buckets 13299 and caps: 4 x 100 ml
Max. RCF: 635
Maximum speed (rpm): 2,000
Minimum speed (rpm): 400
Noise level at maximum speed (approximate) (dB(A)):
Cytology rotors 11260 / 11261: 38
Swing-out rotor 11071 with buckets 13299 and caps: 46
Max. acceleration time (s):
Cytology rotors 11260 / 11261: 12
Swing-out rotor 11071 with buckets 13299 and caps: 7
Max. braking time (s):
Cytology rotors 11260 / 11261: 13
Swing-out rotor 11071 with buckets 13299 and caps: 9
Power consumption (W): 210
Dimensions HxWxD (mm): 293x378x535
Height with open lid (mm): 643
Weight without rotor (kg): 23
Display: LCD
Speed/RCF display: Yes
Timer (s; h:min): 10-99:59
Short run, continuous run: Yes
Time increment (s): 1
Speed increment (s): 100
RCF increments (× g): 10
Programs: 10
Acceleration curves: 2 (fast, soft)
Braking curves: 2 (fast, soft)
Automatic lid opening at the end of the run, switchable: Yes
Start delay adjustable, switchable: Yes
Audible signal, switchable: Yes
Visual standstill indication: Yes
Lockable controller: Yes
Microprocessor control: Yes
