Description

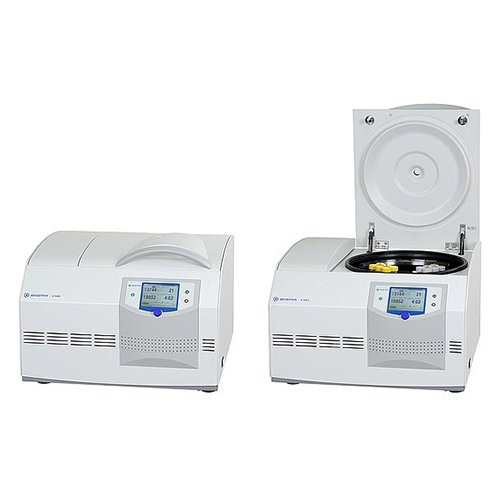

Designed for universal deployment, the Sigma 6-16 series of centrifuges is suitable for a wide variety of routine and research applications. Along with high throughput with fixed-angle and swing-out rotors, they feature impressive RCF values up to 25,419 x g. Laboratory staff and scientists around the world appreciate the high versatility, advanced user interface and outstanding reliability.
Particularly due to the ability to use large-volume fixed-angle rotors with high RCF, the centrifuges cover a distinctly broader range of applications compared to competitive units. A unique feature is the maximum capacity of up to 6 x 500 ml in a fixed-angle rotor with RCF up to 17,207 x g.
With temperature control from -20 to +40°C.
Features
Various angle and swing-out rotors available
Lid can easily be opened due pneumatic swing support
Maximum capacity of 4 x 800 ml down to microtubes with different adapters in the same bucket
Maintenance-free induction drive motor
Microcontroller controls speed, time, temperature and gravitational field
Motorised lid lock
Suitable for low speeds e.g. for cell sedimentation, accuracy ± rpm
Magnetic rotor identification prevents the rotor from over speeding
Stainless steel bowl
Imbalance switch
No need to open the casing for emergency lid lock release
Produced according to national and international safety regulations (e.g. IEC 1010)
Calibration certificate available at an additional cost – please enquire for a quote
Specification
Power supply: 220-240 V, 50 Hz
Speed range up to 15,000rpm
Maximum capacity of 4 x 800 ml
Spincontrol S controller
Interference suppression: EN 61326
Dimensions HxWxD (mm): 485x790x711
Height with open lid (mm): 990
Weight without rotor (kg): 158
Kinetic energy max. (Nm): 154,007
Noise level at max. speed (approx.) (dB (A)):
– Rotor 12600: 63
– Rotor 11650+13650: 63
Max. acceleration (s)
– Rotor 11650+13650: 52
– Rotor 12600: 168
Temperature adjustment range (°C): -20 to +40
