Description

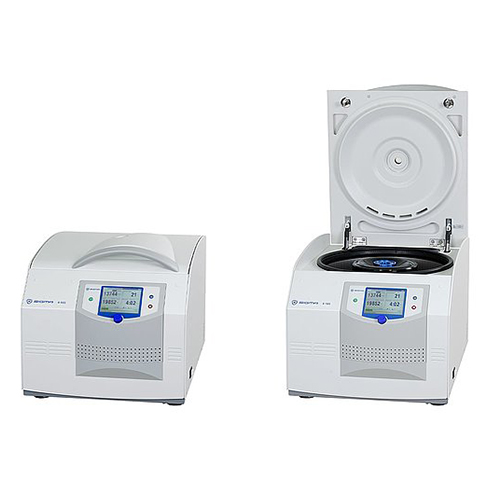

Designed for universal deployment, the Sigma 6-16 series of centrifuges is suitable for a wide variety of routine and research applications. Along with high throughput with fixed-angle and swing-out rotors, the 16-6S features impressive RCF values up to 21,917 x g. Laboratory staff and scientists around the world appreciate the high versatility, advanced user interface and outstanding reliability.
Particularly due to the ability to use large-volume fixed-angle rotors with high RCF, the centrifuges cover a distinctly broader range of applications compared to competitive units. A unique feature is the maximum capacity of up to 6 x 500 ml in a fixed-angle rotor with RCF up to 17,207 x g.
Features
Spincontrol S controller
Various angle and swing-out rotors available
Lid can easily be opened due pneumatic swing support
Maximum capacity of 4 x 800 ml down to microtubes with different adapters in the same bucket
Maintenance-free induction drive motor
Microcontroller controls speed, time, temperature and gravitational field
Motorised lid lock
Suitable for low speeds e.g. for cell sedimentation, accuracy ± 1 rpm
Magnetic rotor identification prevents the rotor from over speeding
Stainless steel bowl
Imbalance switch
No need to open the casing for emergency lid lock release
Produced according to national and international safety regulations (e.g. IEC 1010)
Calibration certificate available at an additional cost – please enquire for a quote
Specification
Speed range up to 13,500 rpm
Maximum capacity of 4 x 800 ml
Power supply: 220-240 V, 50/60 Hz
Spincontrol S controller
Weight without rotor (kg): 116
Kinetic energy max. (Nm): 106.950
Noise level at max. speed (approx.) (dB (A))
– Rotor 12600: 73
– Rotor 111650+13650: 73
Max. acceleration (S)
– Rotor 11650+13650: 29
– Rotor 12600: 149
Temperature setting range: No
