Description

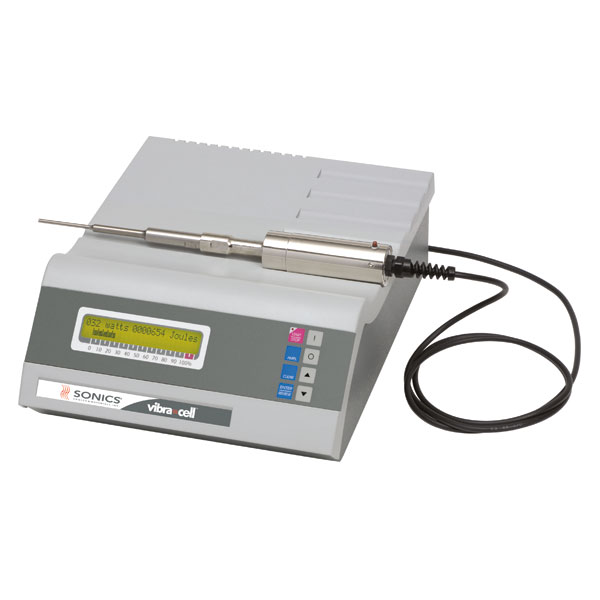

The Sonics VCX-130PB Ultrasonic Processor is able to process from 0.2 to 150ml volume (10 to 150ml with optional probes – please enquire for details and limitations). A pulse button on the converter allows the user to pulse the fluid to reduce heat build-up.
Note that due to having to access the pulse button on the side of the converter, the VCX-130PB is not suited to being situated in a sound abating chamber. In addition, the VCX-130PB is not able to program the pulse mode. If either of the above is likely to cause an issue please purchase the VCX-130 instead.
Features
Energy monitor
Digital wattmeter
Automatic tuning
Automatic amplitude compensation
Microprocessor based
Thumb-actuated pulser
Elapsed time indicator
Variable power output contro
Specification
POWER SUPPLY
Net Power Output 130W, Frequency 20kHz
Dimensions; H x W x D (mm) 115 x 250 x 320
Weight (Kg) 3
Can be run continuously or in a pulsing mode
CONVERTER (Part No. CV 188 with pulsing button)
Piezoelectric lead zirconate titanate crystals (PZT)
STANDARD PROBE (Part No. SON630-0422)
Diameter (mm) 32
Length (mm) 146
Weight (g) 340
Cable Length (m) 1.8
Tip Diameter (mm) 3
Processing Capability (ml) 0.2 to 10. Note: Optional probes are available to extend the capacity to 150ml
Length (mm) 138
Construction Titanium alloy Ti-6Al-4V, autoclavable
ELECTRICAL REQUIREMENTS
Unless otherwise requested, units are shipped wired for 230V, 50/60Hz with a UK plug. Please specify desired voltage option if not for use in the UK
