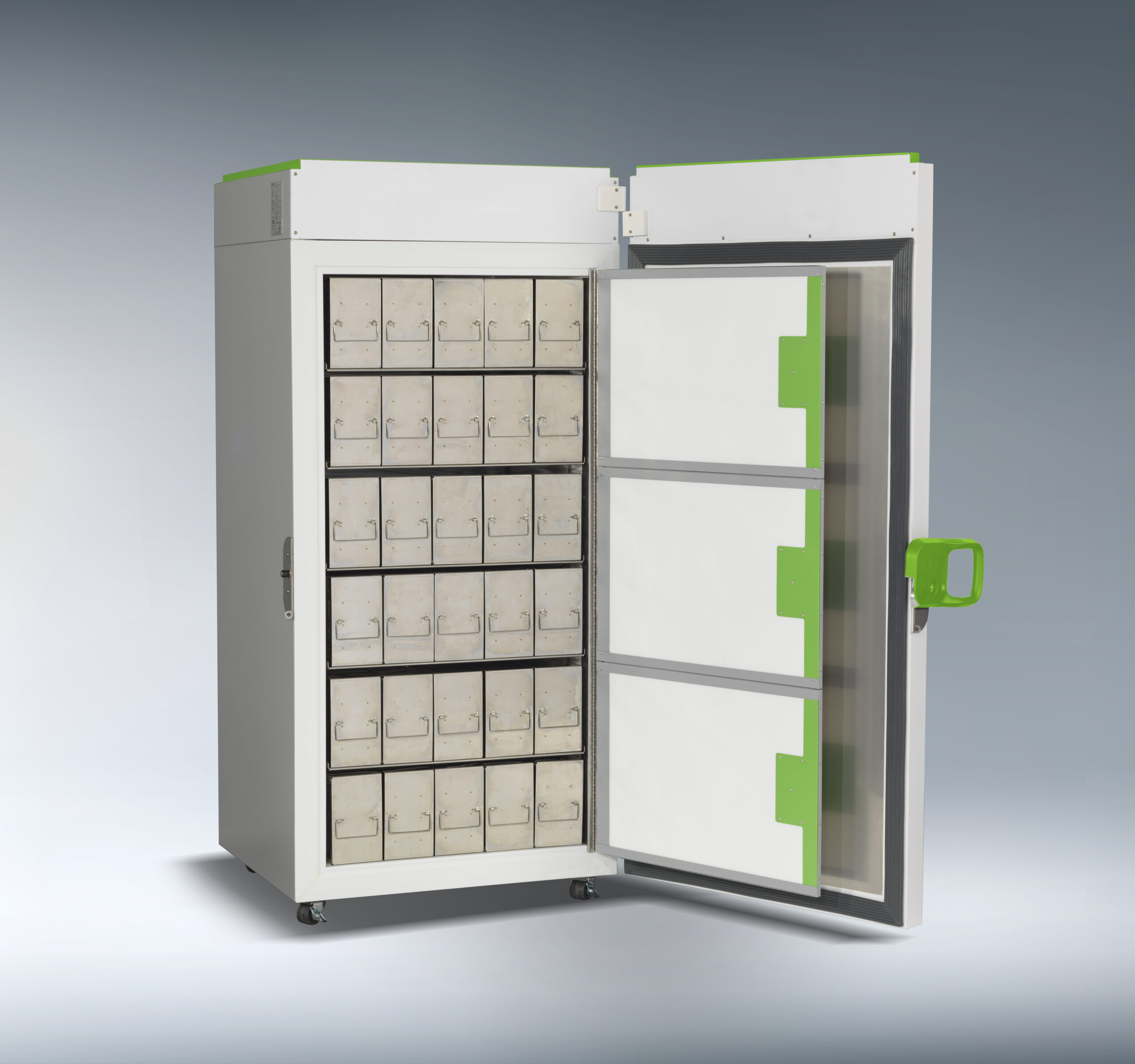

Stirling VAULT100 ultra-low temperature (ULT) freezer

SKU: STIRVAULT100

POA

The Stirling VAULT100 ultra-low temperature (ULT) freezer combines energy- and space-efficiency with a wide temperature range and excellent uniformity.

Description

The Stirling VAULT100 freezer features a more robust engine, unprecedented temperature uniformity and range, and an updated interface that shares freezer health analytics.

The new thermodynamically engineered cabinet design, three sealed inner doors with high-strength magnetic latch, and ambient air-repelling door gaskets maintain temperature uniformity at ±3 °C at -80 °C. The VAULT100 can operate down to -100 °C and delivers fast recovery after door openings to protect the integrity of your samples.

Designed to deliver lower lifetime cost of ownership through energy efficiency, large storage capacity, and lower maintenance and HVAC costs.

Features

  • Steady-state temperature variation over time ±0.2°C* from -80°C setpoint
    • Fast initial pull-down, ambient to -80 °C: <5.5 hours
    • Fast door opening temperature recovery: 26 minutes to -80 °C*
    • Warm-up Profile: 3.8 hours to -60 °C at -80 °C (empty cabinet). 9.3 hours to -40 °C at -80 °C (empty cabinet)
    • Connectivity available to BMS/BAS or 3rd-party monitoring system
    Optional Ethernet connection transmitting in BACnet™
    • Graphical user interface with touchscreen inputs
    • Fully adjustable temperature alarm
    • Onboard Predictive Analytics and proactive maintenance alerts
    • Largest storage capacity per sq. ft. of floor space
    • Flexible power requirements: 120 to 240 VAC at 50/60 Hz
    • Steady State Energy Use: 5.8 kWh/day at -80°C (Weighted Average)*
    • Useful Life: 15 years, nominal
    • Certifications: Energy Star, ACT Label, FDA, UL, CE, UKCA and RoHS
    • Options: CO₂ and LN₂ back-up systems, additional shelves, international plug(s), 4-20 mA – Temperature transmitter: 0 °C to -100 °C (4-20 mA), loop power (8 to 35 VDC) is required

*ENERGY STAR® Final Test Method

Specification

Volume (Litres): 795
Operating Temperature (°C): ‐20 to ‐100, adjustable to 1°C increments
External Dimensions; W x D x H (mm):  915 x 871 x 1996
Internal Dimensions; W x D x H (mm):  732 x 706 x 1542
Weight (Kg): 295
Controller: Microprocessor with touchscreen input and display. Graphical user interface
Alarms:
Event Log: All alarms, door openings, setpoint changes, power outage (Recording in a system memory for 12 months)
Battery Back-up: 24-hour battery back-up for touchscreen and temperature display
Insulation: High performance vacuum insulated panels and polyurethane foam using Ecomate®
environmentally friendly, SNAP‐compliant blowing agent
Doors: Outer 1 / Inner 3 with magnetic latches
Shelving: x5 stainless steel (adjustable)
Capacity: 600 x 2” Boxes (Optional 700* Box system available)  (yes)
Noise (dBA): < 42
Ambient Operating Temperature (°C): +5 to +35
Cooling Engine: Helium charged free‐piston Stirling engine with continuous modulation
Heat Transport System: Gravity driven thermosiphon
Refrigerant: R‐170 (Ethane) 90 grams, HFC/HCFC-free
Evaporator: Cold wall (inner liner)
Heat Rejection: Finned heat exchanger with forced air cooling
Heat Dissipation: 754 Btu/h @ steady state at -75 °C. 889 Btu/h with 6 door openings at -75 °C
